Model
NESTS-SMD-SK
Model
NEST-SMD-DK
Size
L*W*H:6500mm*1200mm*3400mm,supports customization
Size
L*W*H:6500mm*2360mm*3400mm,supports customization
Electrical parameters
Voltage:AC220V,Power:1600W(MAX),UPS optional
Electrical parameters
Voltage:AC220V,Power:3200W(MAX),UPS optional
Storage capacity
7" 8mm reels: 6000 reels, compatible with other thickness combination , supports customization.
Storage capacity
7" 8mm reels: 12000 reels, compatible with other thickness combination , supports customization.

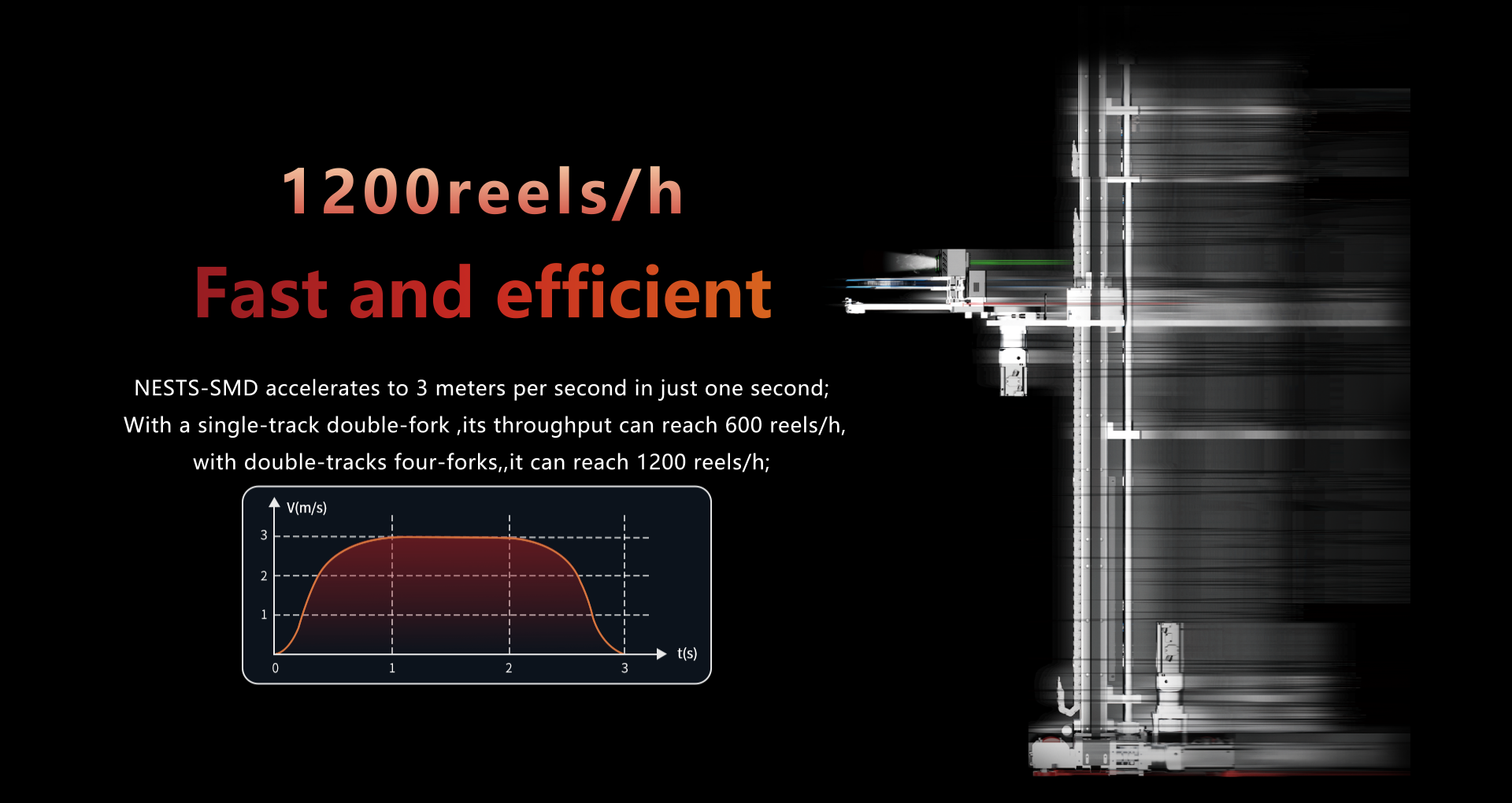

Throughput capacity
high speed: minimum 600 reels/h, ultra-quiet mode: minimum 400 reels/h
Throughput capacity
high speed: minimum 1200 reels/h, ultra-quiet mode: minimum 800 reels/h
Access duplex
double cache structure, concurrent duplex of picking and storing materials
Access duplex
double cache structure, concurrent duplex of picking and storing materials
Recognition system
machine vision recognition, deep self-learning optimization algorithm
Recognition system
machine vision recognition, deep self-learning optimization algorithm
Electrostatic protection
Anti-static level: System-level electrostatic protection
Electrostatic protection
Anti-static level: System-level electrostatic protection
Temperature sensitive monitoring
supports online monitoring of temperature and humidity
Temperature sensitive monitoring
supports online monitoring of temperature and humidity
Material loading and unloading mechanism
automatic palletizing, automatic docking, automatic buffering, buffer capacity: 80 reels (7" 8mm reel)
Material loading and unloading mechanism
automatic palletizing, automatic docking, automatic buffering, buffer capacity: 160 reels (7" 8mm reel)
AGV automatic docking
The material buffer is automatically connected to the AGV, AGV positioning accuracy requirements::±10mm
AGV automatic docking
The material buffer is automatically connected to the AGV, AGV positioning accuracy requirements::±10mm
System interface
standardized interfaces such as equipment information, storage location information, operation information, etc., WMS, ERP or MES system optional
System interface
standardized interfaces such as equipment information, storage location information, operation information, etc., WMS, ERP or MES system optional
Intelligent operation and maintenance
Real-time automatic diagnosis of electronic control equipment, worn parts, etc., supporting fault alarm, safe shutdown, automatic recovery, one-stop intelligent equipment operation and maintenance platform, supporting online equipment monitoring and operation and maintenance prediction;
Intelligent operation and maintenance
Real-time automatic diagnosis of electronic control equipment, worn parts, etc., supporting fault alarm, safe shutdown, automatic recovery, one-stop intelligent equipment operation and maintenance platform, supporting online equipment monitoring and operation and maintenance prediction;
